36 textures

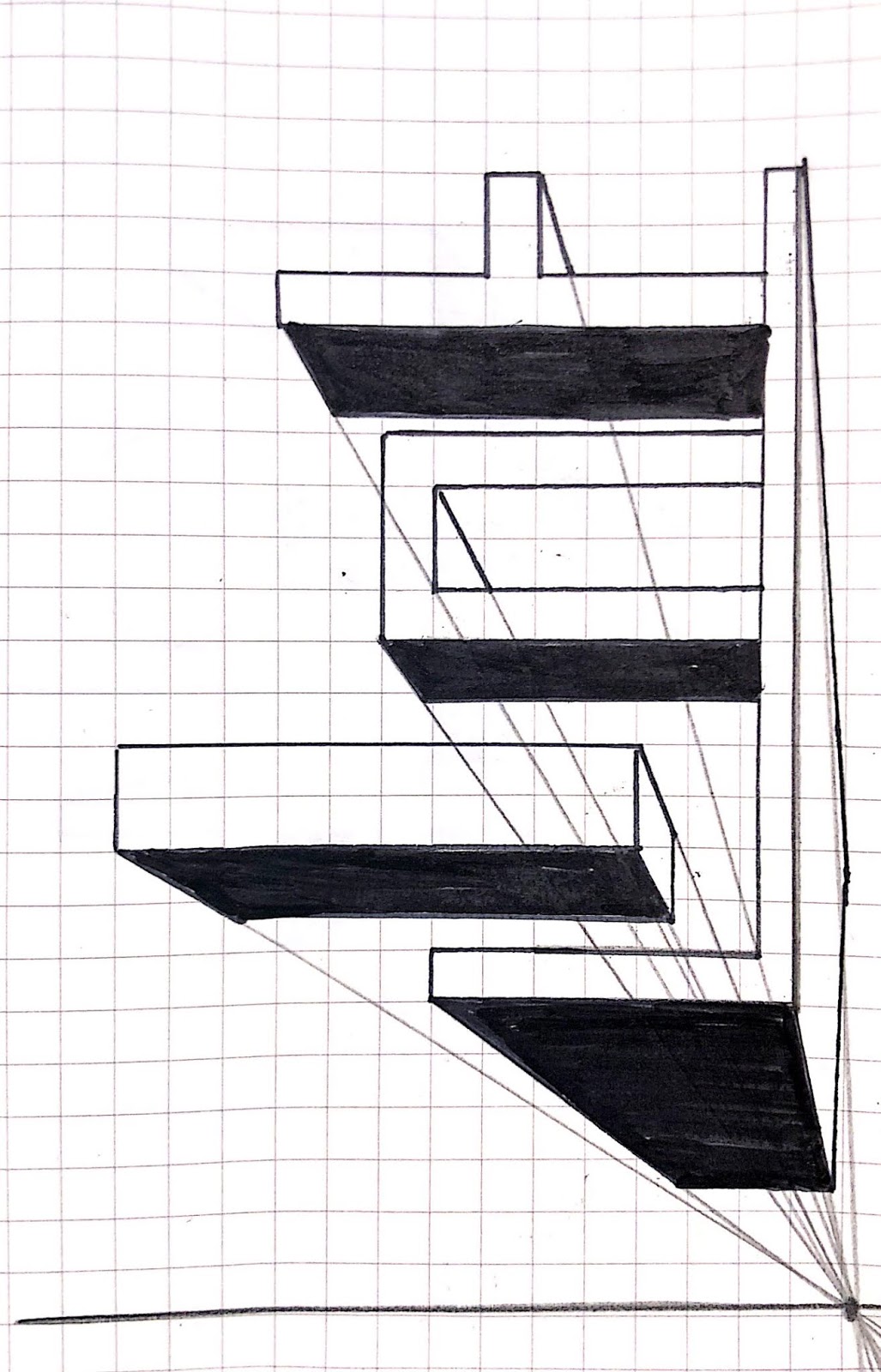

sketches

Exp3 Final Image

The facade utilises steel structure as support.

The storeys have similar structure which can be seen as "

'repetition"

The Gallery

The computer room

Workshop

Library

Lecture theatre

Research centre

MOVNIG ELEMENT:

The exit to the stairs can be constantly closed to provide more platform for people

The ceiling of the top floor can be extended to provide shading when needed and also can be worked as a shelter

Lumion: https://www.archdaily.com/871708/public-pools-or-private-houses-how-should-stockholm-use-its-cliffs

Sketchup: https://www.archdaily.com/871708/public-pools-or-private-houses-how-should-stockholm-use-its-cliffs

Moving elements

Article

The Infinity Pool offers a 1km stretch of public space along the Sodermalm cliffs, hosting sweeping vistas of the magnificent Baltic inlet, where an archipelago slowly blends into the urban landscape of Stockholm. During Spring, Summer, and Autumn, a rooftop swimming pool is heated by waste heat, with water supplied from the Baltic Sea via a treatment facility. During colder winter months, the water freezes to create a surface ideal for ice skating.

The structure underneath the pool contains dressing rooms, showers, and saunas, also offering unobstructed views towards the Baltic Sea. Similar to Nestinbox, the load-bearing steel structure of the Infinity Pool is bolted to the bedrock of existing cliff faces, while a modular, concrete secondary structure can be mounted and secured to the steel structure by crane.

Nestinbox and the Infinity Pool address identical site conditions from entirely different standpoints. Nestinbox sees the cliffs of Stockholm as an untapped resource for addressing a global growing demand for housing, creating a residential community above ground level. By contrast, UMA sees the cliffs as an opportunity to invest in inclusive, attractive public space, enhancing the touristic appeal of Stockholm as a city of creative innovation.

Source: https://www.archdaily.com/871708/public-pools-or-private-houses-how-should-stockholm-use-its-cliffs


Concept: Steel structure, repetition, rhythm

Real Time Image Captures

The hero shot shows the play of light in the railway station, the architecture enables people to have a soft light.


                                           The park next to the railway station provides people, especially children a place to relax. This shows the relationships between the architecture and the surrounding environment. Furthermore, the sustainable and natural material wood brings people a feeling of relaxing.


                                         This scene clearly conveyed the concept of "architecture happens in time, whereas music begins and ends"by having the curved structure of the railing and the shelter. By having different degree of slope and the sizes, people may feel the architecture as the rhythms of the music.

The small shelter besides the architecture provides people a private space. Moreover, most of the materials that is used in the station is wood, which is a popular materials that is applied to traditional African Architecture. Together with the curved shape, this has emphasised the concept of " Passionate about an African design and aesthetic that serves the public and client, bringing dignity and grace to the building environment."

The hero shot demonstrates the overall view of the architecture and further emphasises the relationship between the station and the environment.

Lumion: https://drive.google.com/open?id=1zUCZ6vGOi7XQv-k0IvyC-UNqG53UAlHp

Sketchup: https://drive.google.com/open?id=1Qnu1jwNyzyrXbK_7jEQNlEfgxP2v5HJp

*Note: The sketchup model has been changed after importing to Lumion.
